Dettagli del prodotto
Luogo di origine: Cina
Marca: ENWEI
Certificazione: CE
Numero di modello: 3190 Modello
Documento: 3190 solar camera trailer.pdf
Termini di trasporto & di pagamento
Quantità di ordine minimo: 1
Imballaggi particolari: Un 20GP può caricare 4 unità, una 40HQ può caricare 8 unità
Tempi di consegna: Entro 30 giorni
Termini di pagamento: T/t
Capacità di alimentazione: 200 unità al mese
Pannelli solari: |
3*400w |
Batterie: |
4*200ah, DC12V |
Albero: |
6 metri, sollevamento manuale |
Controller: |
MPPT 60A |
Inverter: |
1000W, onda sinusoidale pura, output AC 220 V. |
Gambe di supporto: |
4 pezzi |
Cavi: |
Cat6 e cavo di alimentazione |
Pneumatici: |
R14 |
Temperatura di lavoro: |
Da -35 a 60 gradi Celsius |
Trailer Weakight: |
È dotato di funzioni di frenata, inverte e sterzo |
Pannelli solari: |
3*400w |
Batterie: |
4*200ah, DC12V |
Albero: |
6 metri, sollevamento manuale |
Controller: |
MPPT 60A |
Inverter: |
1000W, onda sinusoidale pura, output AC 220 V. |
Gambe di supporto: |
4 pezzi |
Cavi: |
Cat6 e cavo di alimentazione |
Pneumatici: |
R14 |
Temperatura di lavoro: |
Da -35 a 60 gradi Celsius |
Trailer Weakight: |
È dotato di funzioni di frenata, inverte e sterzo |

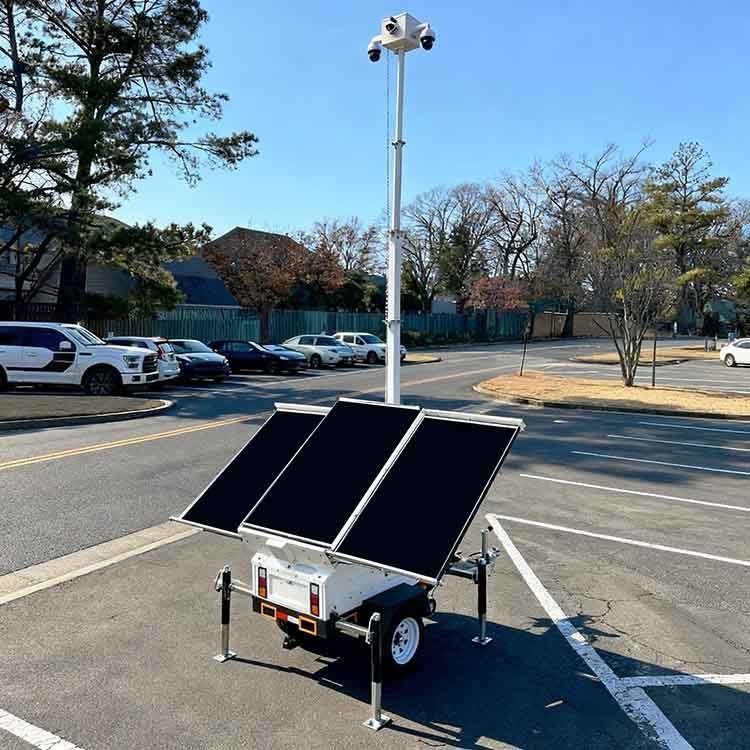

Solar-Powered Surveillance Trailer for Construction Site Security Monitoring
1. Ultimate convenience, rapid deployment.
2. Off-grid operation, green and environmental protection.
3. Remote real-time management: Through 4G/5G wireless networks, managers can remotely view the screen in real time on their computers or mobile phone apps.
4. The material of the cold-galvanized steel plate trailer body is powder coating on the surface, which has excellent anti-corrosion effect and is suitable for working in various environments.
Applications:
1. Remote area project: For remote construction sites with weak infrastructure, this solution is the only feasible and efficient monitoring method.
2. Monitor the progress of the project.
3. Monitor the main entrances and exits, material warehouses, living areas, etc., and record the entry and exit of people and vehicles.
4. Military patrols, border security.
Specification of Solar-Powered Surveillance Trailer:
Solar panels | 3*400W |
Batteries | 4*200Ah, 12V |
Mast | 6m, manual lifting |
Controller | 60A MPPT |
Inverter |
1000W, pure sine wave |
Size | 1850*1350*2150mm |
Weight | about 1000kg |
